Rcodenewf 44 Report post Posted August 8, 2022 Anyone have a pic of their ebrake cable routing ? I have the schematic but it doesn't show clearly whether it goes above the reinforcement plate or through holes in the lower seat supports. Seat supports were replaced. Thanks...John Quote Share this post Link to post Share on other sites

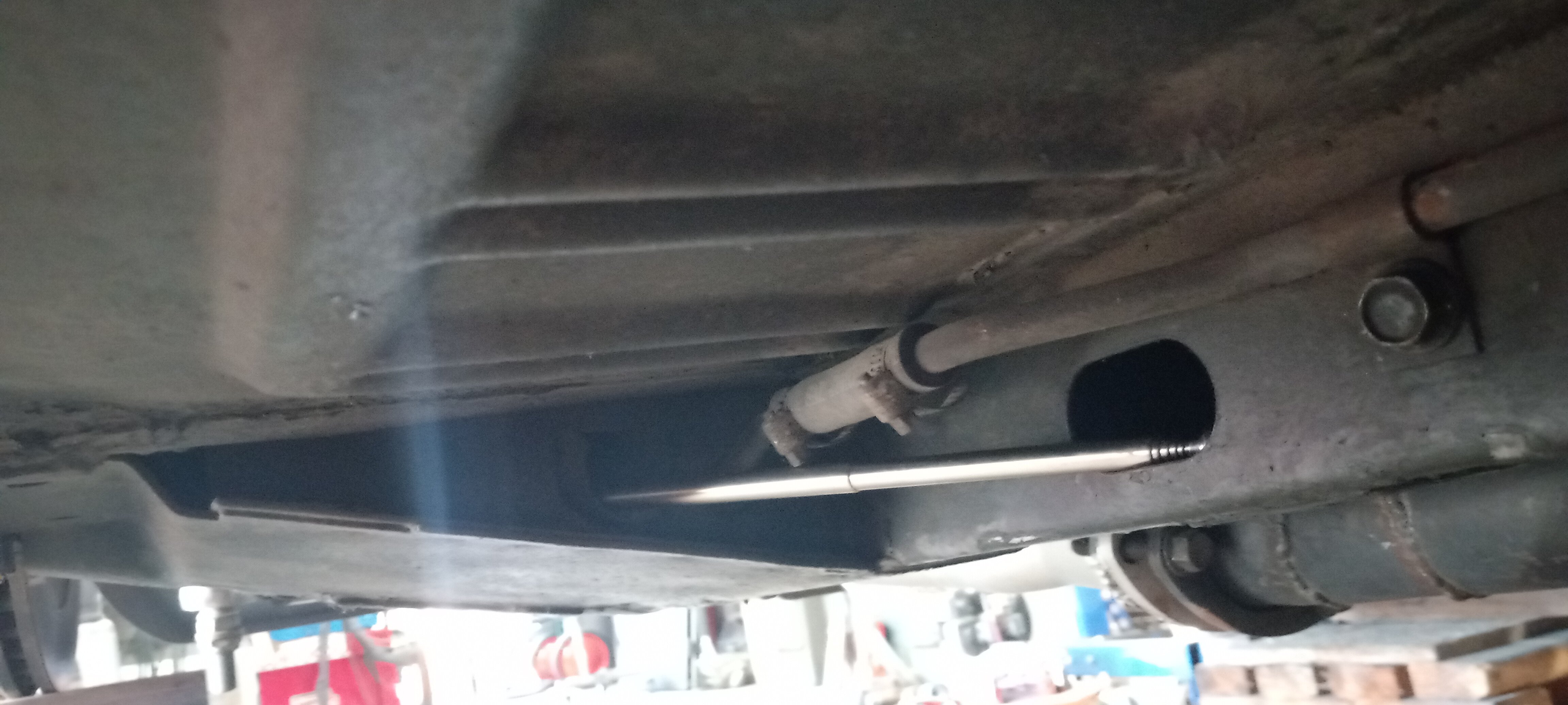

RPM 1,271 Report post Posted August 8, 2022 No pics of where it exits the cabin and thru a tube in the torque box, but it doesn't go thru the seat support. It goes thru the toe plate of the floor, thru the torque box, thru the frame rail exiting to the center of the undercarriage. The Ford Shop Manual has some drawings of it. Quote Share this post Link to post Share on other sites
Rcodenewf 44 Report post Posted August 9, 2022 Hello Rpm: Yes, i have that figured out..same as yours. Its when it splits into 2..From there back..that's where it isn't routing correctly. John Quote Share this post Link to post Share on other sites
jmlay 92 Report post Posted August 9, 2022 Try this: I missed the convertible portion... This should help: https://www.motorclassiccorp.com/used-vehicle-1970-shelby-gt-350-mustang-convertible-c-53/ Quote Share this post Link to post Share on other sites
RPM 1,271 Report post Posted August 9, 2022 Damn, missed the convertible part also. Quote Share this post Link to post Share on other sites
Rcodenewf 44 Report post Posted August 10, 2022 Hello jmlay. Yep! That's exactly what i was looking for. Now i see the routing of the cables through the floor supports. I'll have to check but i believe those cutouts aren't in the supports i welded in. But, from those pics i'm sure i can replicate the locations of those openings. Much appreciated! John Quote Share this post Link to post Share on other sites
